Energy-Saving PP PET Monofilament Extruder For Brush & Broom

Short Description:

This monofilament machine is to make plastic filaments for brush and broom. It can not only use new and recycled granules, but also can use pet flakes directly to reduce the production cost for customer. Oven and cutter are provided to help to make the filament straight and cut into small pieces in required length. The embossing machine is also available to make crimped filament.

Material: PP PET

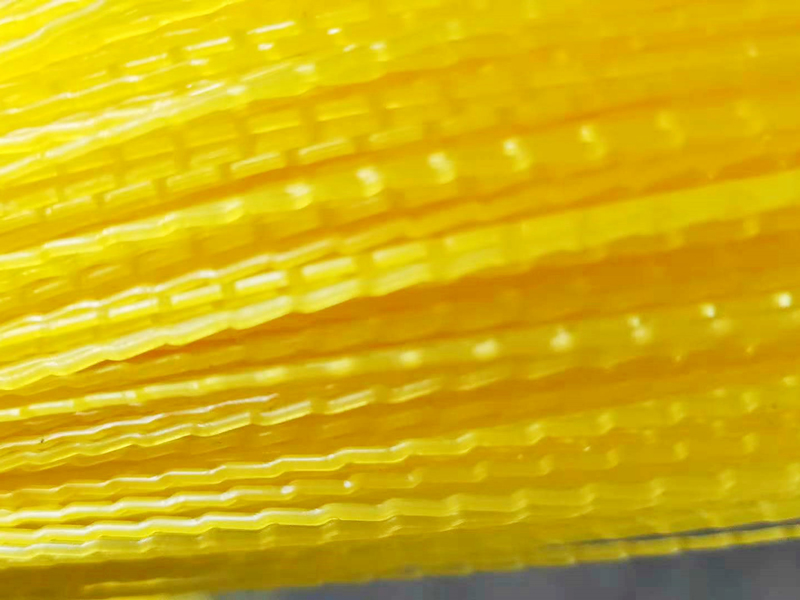

Finished Shape: Round, Crimpled

Extruder size: 65 & 80 & 90 & 110 & 125

Send email to us

Product Detail

Product Tags

Technical Parameters

Type		SYP(T)-B65	SYP(T)-B80	SYP(T)-B90	SYP(T)-B110	SYP(T)-B125
Screw Diameter(mm)		65	80	90	110	125
Gross power(kw)		90	100	130	150	170
Actual power consumption (kw)		40	50	65	70	85
Productivity(kg/h)	PP	30-50	40-70	60-90	100-140	100-140
Productivity(kg/h)	PET	50-70	80-90	100-125	130-160	160-200
Dimensions(m)		L: 20-25, W: 2-3, H: 2-3
Dimensions(m)		It can be designed according to workshop size.
Total weight(t)		7.5	8.2	9.6	10.8	12.8

Function

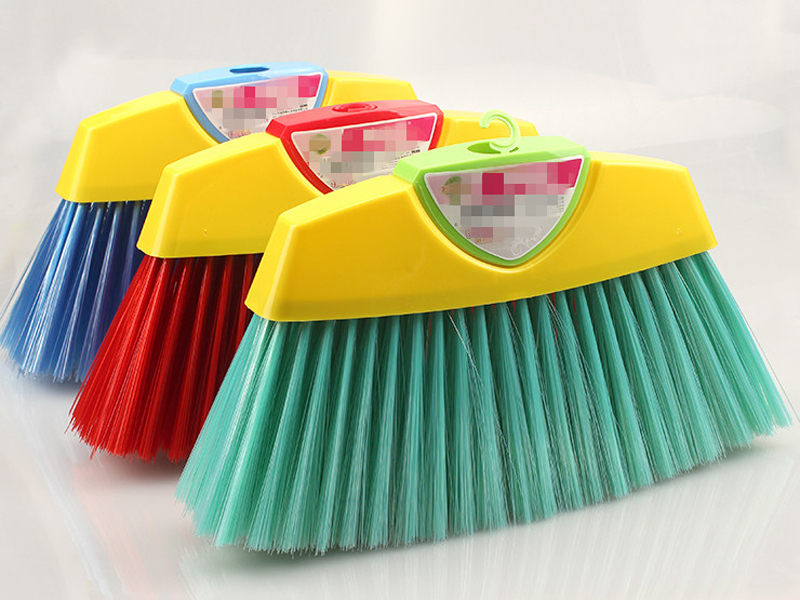

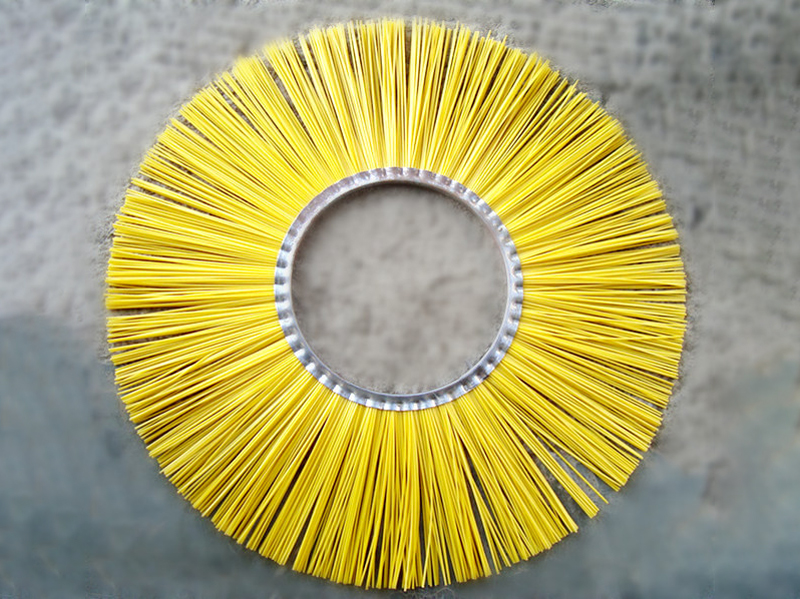

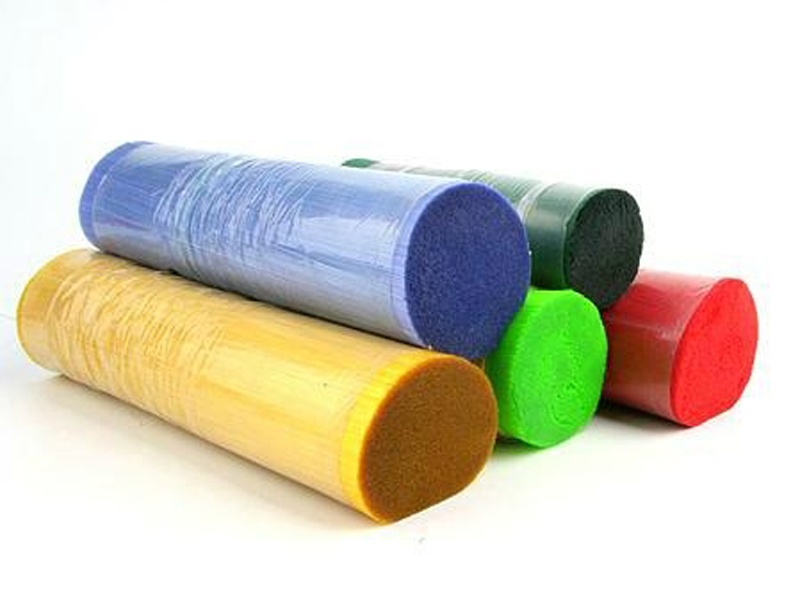

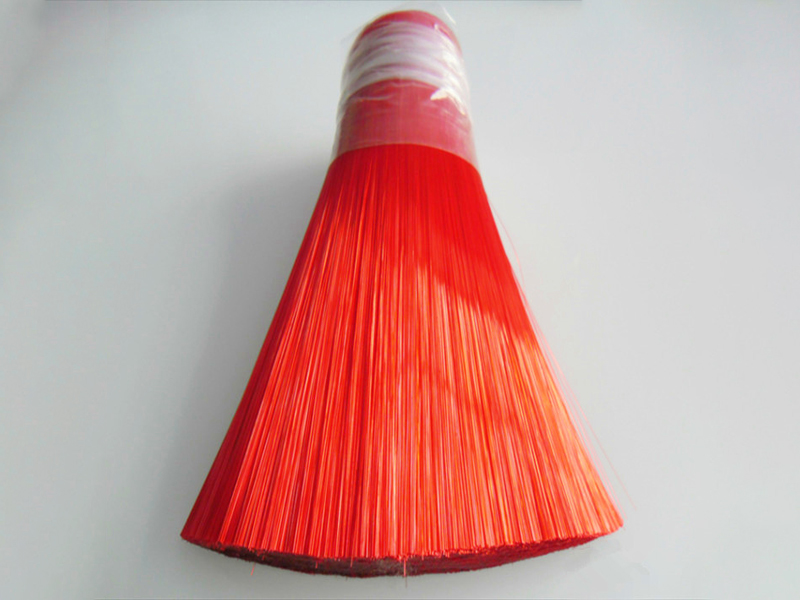

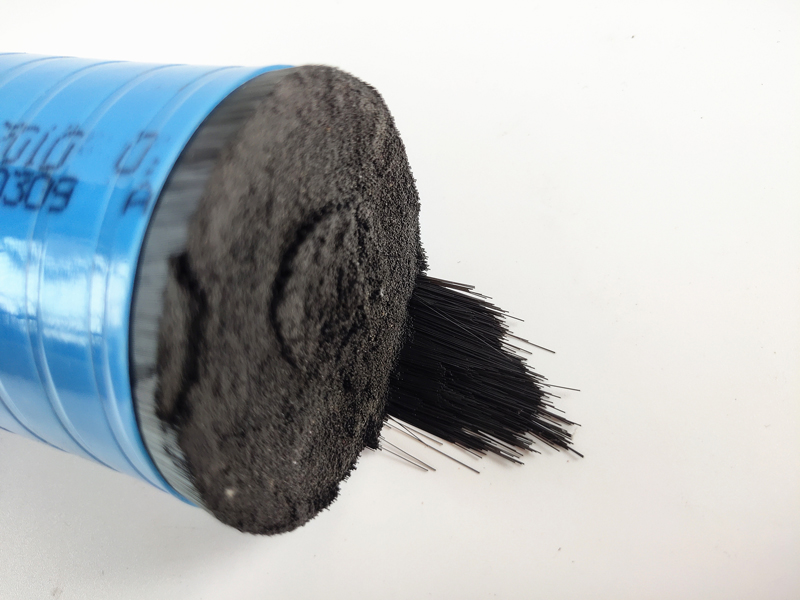

The brush filament production line is to make filaments for all kinds of brushes and brooms, like scrub brush, bristle brush, toilet brush, road sweeper brush, Christmas tree pine needle, etc.

g.-monofilament-machine-for--Christmas-tree-pine-needle

Product Video

Production Process of Extruding Part

The mixing dryer - The extruder - The cold water tank – The first traction part - The first stretching part (hot water tank)- The second traction part – The second stretching part(oven) - The winders.

Auxiliary Equipment

Oven: Makes filaments more supple and straight
Cutter: Cut the wrapped filament into agreed small pieces
More auxiliary equipment is available to change the shape of the product and improve the quality of the product. Different products have slight difference in production processes and requires different auxiliary machines. We will recommend according to the actual situation. You are welcomed to contact with us to get advices.
